Ozone Viper 6 (EN D, Competition)
- For classic competition
- Unsheathed lines
- Winglets for roll stability
- Best efficiency for long XC expeditions
- PK system and 2D steering
- High top speed over 70km/h

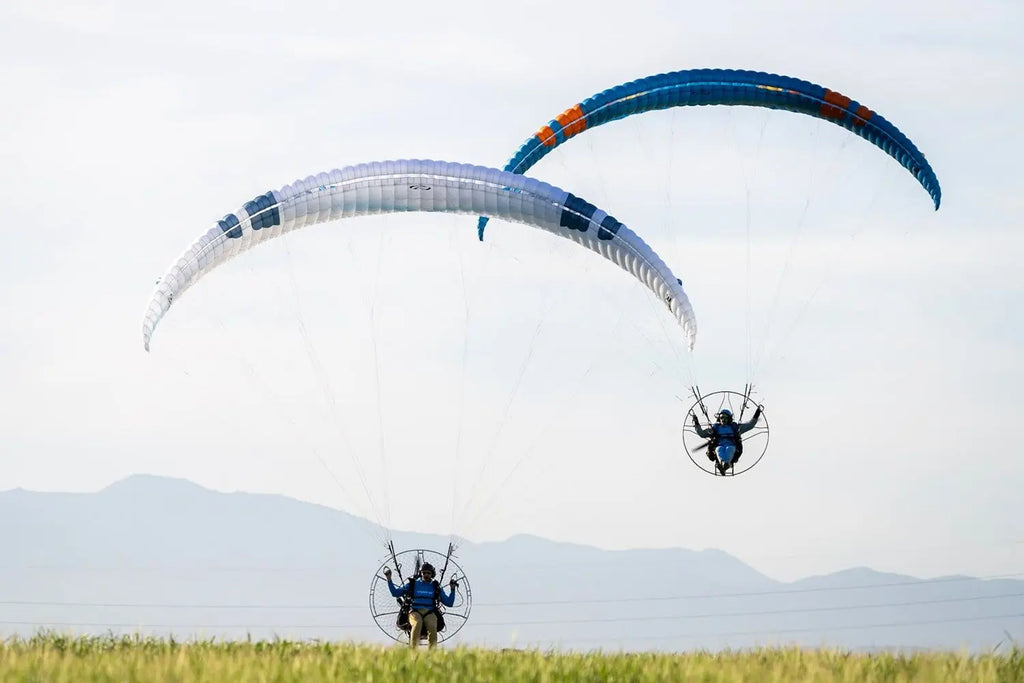

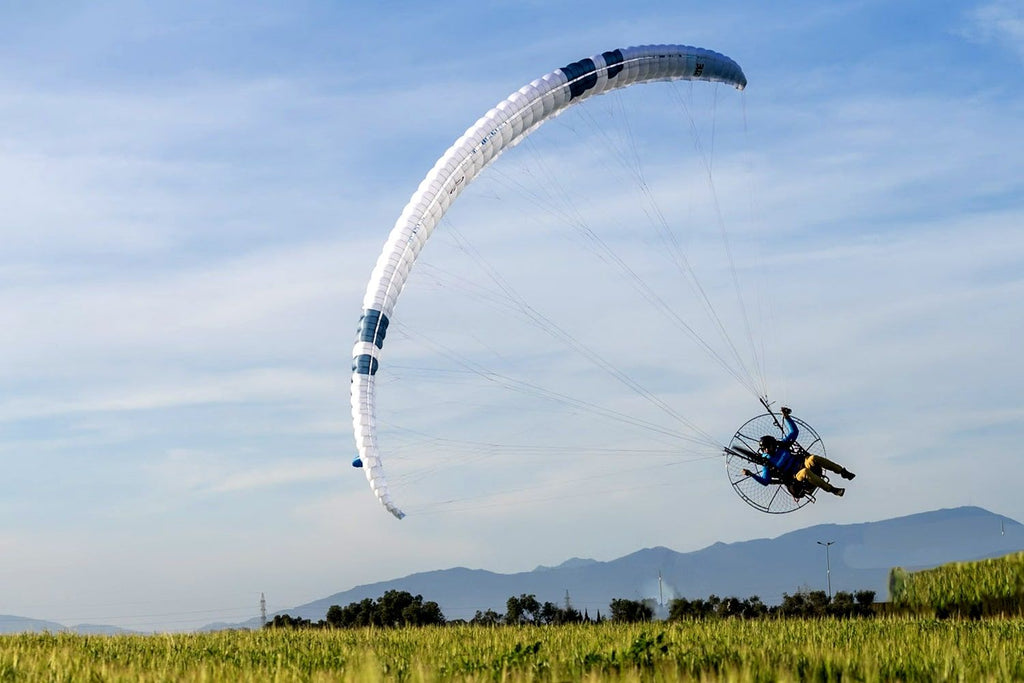

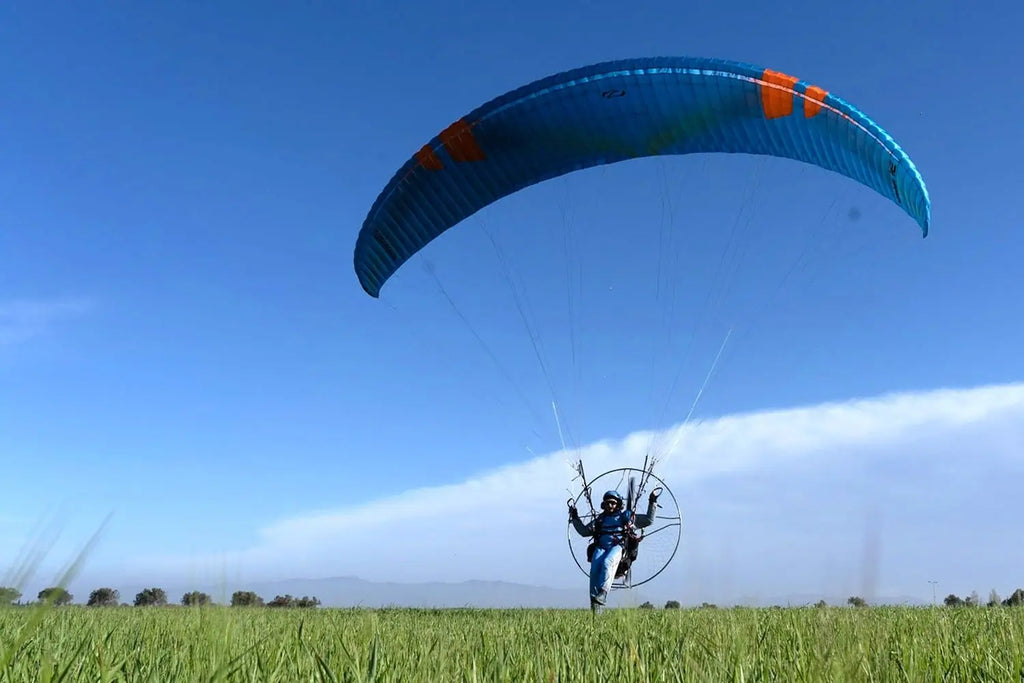

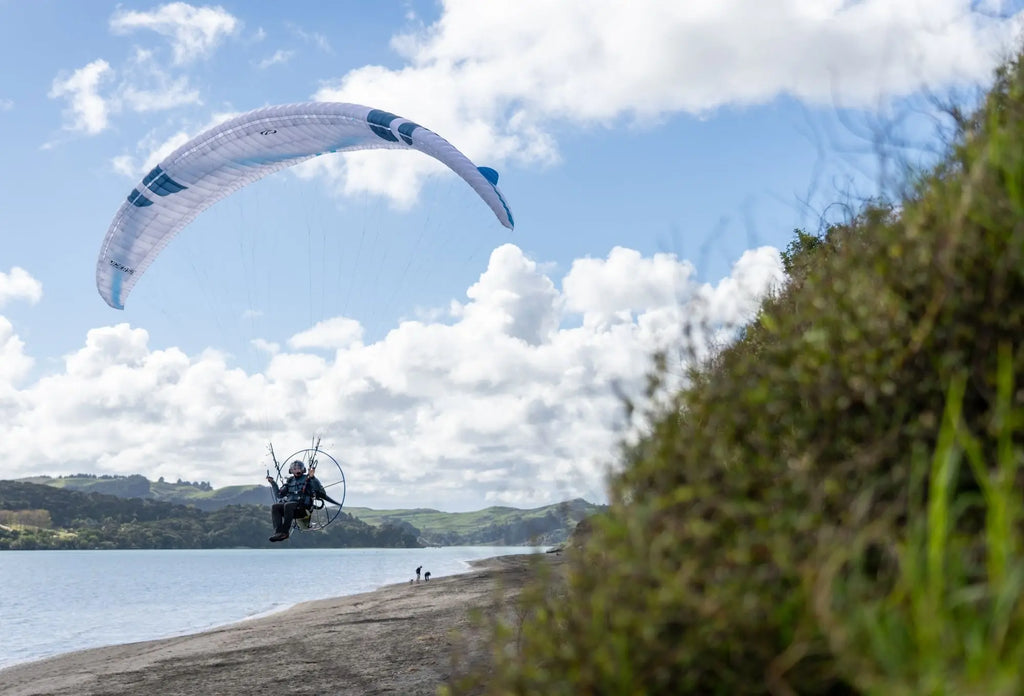

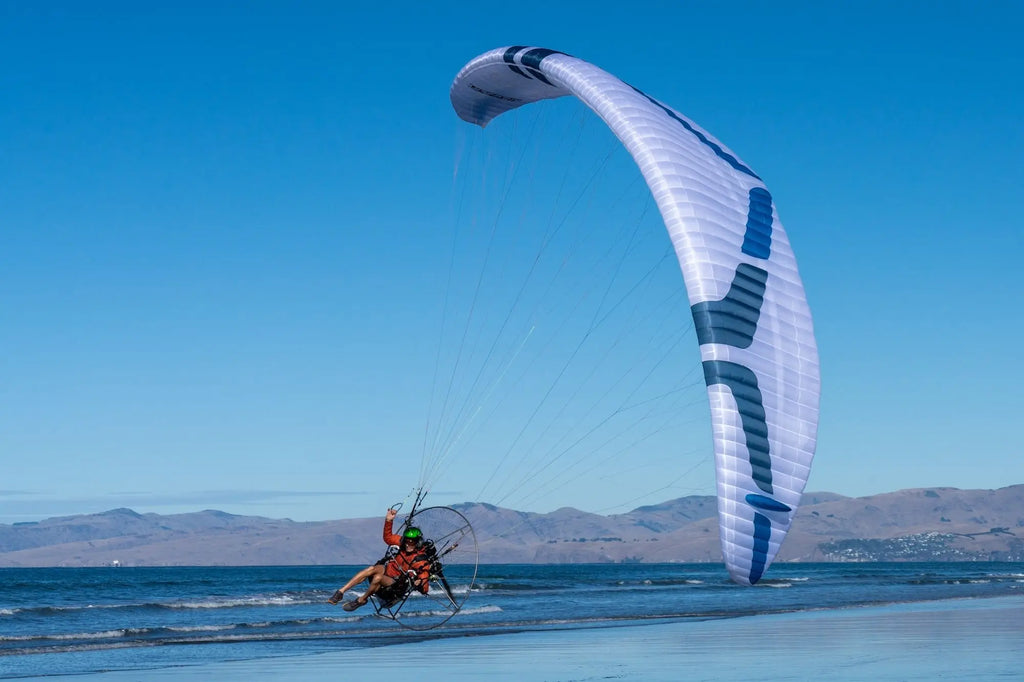

The Viper 6 is a high-performance PPG wing designed for experienced pilots searching for the highest levels of efficiency, speed and performance. It features the latest design elements and technology taken directly from our high performance PG and PPG development programs to deliver an exciting wing that is fun to fly with performance levels ideal for long XC flying and high level classic competitions.
Higher performance allows for better fuel efficiency and extended XC flights, there is no need to fly over-powered. In thermal conditions its glide, sink rate and handling characteristics are similar to a free flight paraglider with very agile, fun handling and exceptional climb and glide performance.
DESIGN
The Viper 6 features winglets for improved roll stability, making it more efficient in straight flight with less parasitic roll movements requiring less pilot input. Winglets also aid in the spiral stability reducing the chances of remaining neutral in the spiral dive.
The internal structure has been strengthened in critical load areas to reduce the mechanical deformation of the ribs and diagonals. This results in better structural integrity of the wing, ensuring the sail retains its quality over time for better performance and longevity. The use of light weight siliconized Dominico N10D fabric reduces the overall weight of the sail for improved handling, greater feel and better inflation characteristics whilst the silicon coating significantly improves durability for a longer lifespan. The profile has been chosen to perfectly balance performance, solidity, efficiency and handling with minor modifications to the planform for a smoother more progressive rib alignment.
RISERS
The risers features colour coding to differentiate the risers, new maillon line keepers, brake handles with twist-preventing swivels and magnetic-lock clips. As standard, there is an Ozone PK system built into the risers and 2D steering system.
PILOT
Designed specifically for competent and experienced pilots, the Viper 6 is the World Champion’s choice and the perfect tool for classic competitions and XC flying.
SPECIFICATIONS
|
SIZES |
16 |
18 |
20 |
22 |
|
Number of cells |
62 |
62 |
62 |
62 |
|
Projected area (m2) |
13.7 |
15.4 |
17.1 |
18.8 |
|
Flat Area (m^2) |
16.1 |
18.1 |
20.1 |
22.1 |
|
Projected Span (m) |
7.68 |
8.15 |
8.58 |
9 |
|
Flat Span (m) |
9.64 |
10.22 |
10.77 |
11.3 |
|
Projected Aspect Ratio |
4.3 |
4.3 |
4.3 |
4.3 |
|
Flat Aspect Ratio |
5.8 |
5.8 |
5.8 |
5.8 |
|
Root Chord (m) |
2.1 |
2.23 |
2.35 |
2.46 |
|
Glider Weight (kg) |
3.48 |
3.69 |
3.98 |
4.26 |
|
PG Weight Range (kg) |
55-80 |
65-90 |
75-105 |
85-115 |
|
PPG Weight Range (kg) |
80-120 |
90-130 |
100-140 |
110-160 |
|
DGAC |
DGAC |
DGAC |
DGAC |
DGAC |
- Weights may vary up to 50gm per size due to slight variations in the manufacturing of the fabric used.

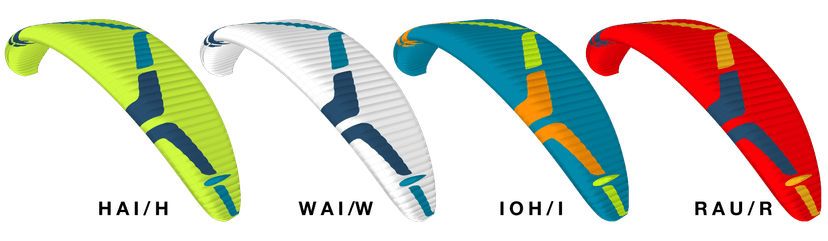

Colour Options
Or choose Custom Colors. --> You'll be directed to Ozone's website. Pick your colors and click on the "Send it to my local distributor" button, then "Continue," fill out form, etc. Be sure to use your real addresses, as that's how Ozone notifies Bozeman Paragliding of your order. Custom colors add $150 to glider pricing
Materials
- Top Surface Cloth: Dominico N20D / N10D
- Bottom Surface Cloth: Dominico N10D
- Rib cloth: Porcher 9017 E29 / 7000 E29 (Hard)
- Upper lines: Edelrid 8001 series
- Mid lines: Edelrid 8001 series
- Lower Lines: Edelrid 8001 series
