Ozone Zeolite GT 2 (EN D, 2-Liner, Lightweight)

$6,200.00

PRODUCT INFO

The Zeolite 2 GT development process pulled technology from the Photon and the Zeolite 2 XD (2023 X-Alps Design). This potent DNA combination has yielded a comfortable and highly efficient tool for hike & fly, vol-biv, and serious XC.

The Design

The profile has evolved to include the latest progress we've made in the areas of speed and handling. Principally, the benefits have come from a new cell opening position.

The aspect ratio is slightly increased, but still moderate for the category and very has proved to be comfortable in strong alpine conditions. The cell count is increased by 7, but a new refined structure provides the resulting performance increase without adding weight.

In Flight

Passive safety and collapse behavior has been improved via better chordwise line support at the rear of the wing. Despite the improved support, total line drag is less than its predecessor. A new spanwise architecture is made entirely of 3-cell bridges, similar to the Photon. This allows the best diagonal panel ratio for the amount of line attachments, which maintains light weight while increasing efficiency.

Photon or Zeolite GT?

The Zeolite GT is a faster and more agile wing for more experienced pilots. The Zeolite GT's arc and winglet-free design yields the best possible thermalling experience while maintaining good collapse recovery behavior, however the pilot workload in turbulent air is higher than the Photon. The Zeolite requires more precise inputs in strong conditions as it is less pitch & roll stable. It is 1kg lighter and lower pack volume than the Photon. The durability of both wings is similar.

SPECIFICATIONS

SIZES

XS

S

MS

ML

L

Number of cells

71

71

71

71

71

Projected area (m2)

15.9

17.2

18.5

19.8

21.1

Flat Area (m^2)

18.9

20.4

22

23.5

25.1

Projected Span (m)

8.9

9.3

9.6

9.9

10.3

Flat Span (m)

11.3

11.8

12.2

12.6

13.1

Projected Aspect Ratio

5

5

5

5

5

Flat Aspect Ratio

6.8

6.8

6.8

6.8

6.8

Root Chord (m)

2.09

2.17

2.26

2.33

2.41

Glider Weight (kg)

3.38

3.56

3.75

3.91

4.19

In-flight Weight Range (kg)

60-75

65-85

80-95

90-105

100-115

Certification

D

D

D

D

D

  • Weights may vary up to 50gm per size due to slight variations in the manufacturing of the fabric used.

Materials

  • Top Surface Cloth: Dominico 20D / 10D
  • Bottom Surface Cloth: Dominico 10D
  • Rib cloth: Porcher 9017 E29 (hard) / Dominico 32 (hard)
  • Upper lines: Edelrid 8001 serie
  • Mid lines: Edelrid 8001 serie
  • Lower Lines: Edelrid 8001 serie

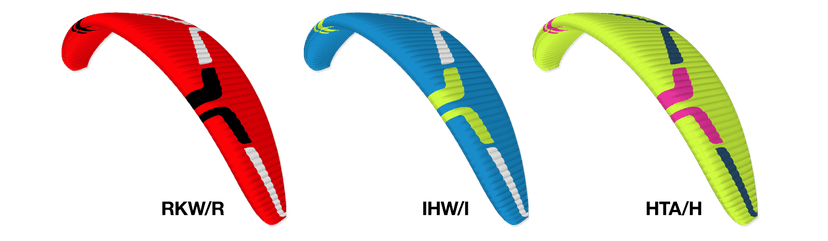

Colour Options

Colour Options

Custom Colors

For custom colors visit Ozone and create your custom design. Then under Share Your Design click OZONE Dealer. Fill out all of the information, select Bozeman Paragliding and then Send To Dealer.
