A NEW PARADIGM
The Bonanza 3 offers a whole new world of flying. Performance and speed has never been so accessible.
The Bonanza 3 is our new 2 liner Sports Class wing for XC pilots featuring our Wave Leading Edge Technology, inspired by the tubercles of the humpback whale. The delaying of the separation point at high angles of attack increases aerodynamic efficiency — meaning you climb faster and with more control.
- excellent climbing due to Wave Leading Edge technology
- excellent glide performance, the wing bites into lift and cuts through turbulence and sink
- high pitch stability in strong conditions
- very stable, especially on bar
- efficient steering and fast acceleration on bar
- high top speed
TECHNICAL SPECIFICATIONS
SIZE |
XXS |
XS |
S |
M |
L |
Flat area (m2) |
19.53 |
21.20 |
23.00 |
24.88 |
26.90 |
Flat span (m) |
11.09 |
11.56 |
12.04 |
12.52 |
13.02 |
Flat aspect ratio |
6.3 |
6.3 |
6.3 |
6.3 |
6.3 |
Projected area (m2) |
16.58 |
17.99 |
19.52 |
21.11 |
22.83 |
Projected span (m) |
8.93 |
9.31 |
9.69 |
10.08 |
10.48 |
Projected aspect ratio |
4.81 |
4.81 |
4.81 |
4.81 |
4.81 |
Chord (m) |
2.14 |
2.27 |
2.32 |
2.41 |
2.51 |
Number of cells |
65 |
65 |
65 |
65 |
65 |
Glider weight (kg) |
4.3 |
4.5 |
4.75 |
5.15 |
5.55 |
Weight range (kg) |
60-75 |
75-90 |
85-100 |
95-110 |
105-125 |
Ideal weight (kg) |
63-73 |
78-88 |
88-98 |
98-108 |
110-123 |
Certification |
EN C |
EN C |
EN C |
EN C |
EN C |
The Wave Leading Edge comes to sports class
The Bonanza 3 marks the introduction of our Wave Leading Edge technology to sports class pilots. Inspired by the tubercles of the humpback whale, the technology has been realised in paragliders through the “GIN LAB”, a wind tunnel project run by Gin Gliders in collaboration with Ulsan National Institute of Science and Technology in South Korea. The technology has already been well proven in competition and record XC flights.
Fast and easy climbing
One key benefit of the Wave Leading Edge is the increased efficiency at high angles of attack. The delaying of the separation point results in increased low speed control authority and performance in the climb. The wing is quite simple to turn just using inside brake and doesn’t require any special techniques.
True glide performance
Much of the Bonanza 3’s performance advantage comes from the way it cuts through the turbulence and takes the takes the lift on glides. Naturally as a 2 liner, it’s also very efficient on the speed bar.
Solid as a rock
Due to the high spanwise tension, the Bonanza 3 is more collapse resistant than the Bonanza 2, especially at speed. The solidity of wing provides excellent information about the air, allowing you to maximise your performance and enjoyment.
Just let it go
The Bonanza 3 will sniff out lifty lines and thermals. There’s no need to work hard controlling the wing, gentle guiding with the rear risers will usually be enough. The wing offers just the right amount of feedback to enable you to follow even the smallest and most elusive of thermal cores.
DESIGNER NOTES
Designer Gin Seok Song explains the concept behind the Bonanza 3
“The design goal was not to push to the absolute limits of the “C” category, but to make a real XC wing that would be a natural successor to the Bonanza 2. It was also important to consider pilots progressing from high B wings like the Explorer series. By realising the Bonanza 3 as a 2 liner and with the Wave Leading Edge technology from the Boomerang 12, we were actually able to reduce the aspect ratio slightly, which makes the wing nicer to fly and more accessible. Of course, to fly this wing pilots still need to be well-practiced in active recovery techniques for 2 liners."
DETAILS
- Optimized profile with Equalized Pressure Technology (EPT) for stability and performance

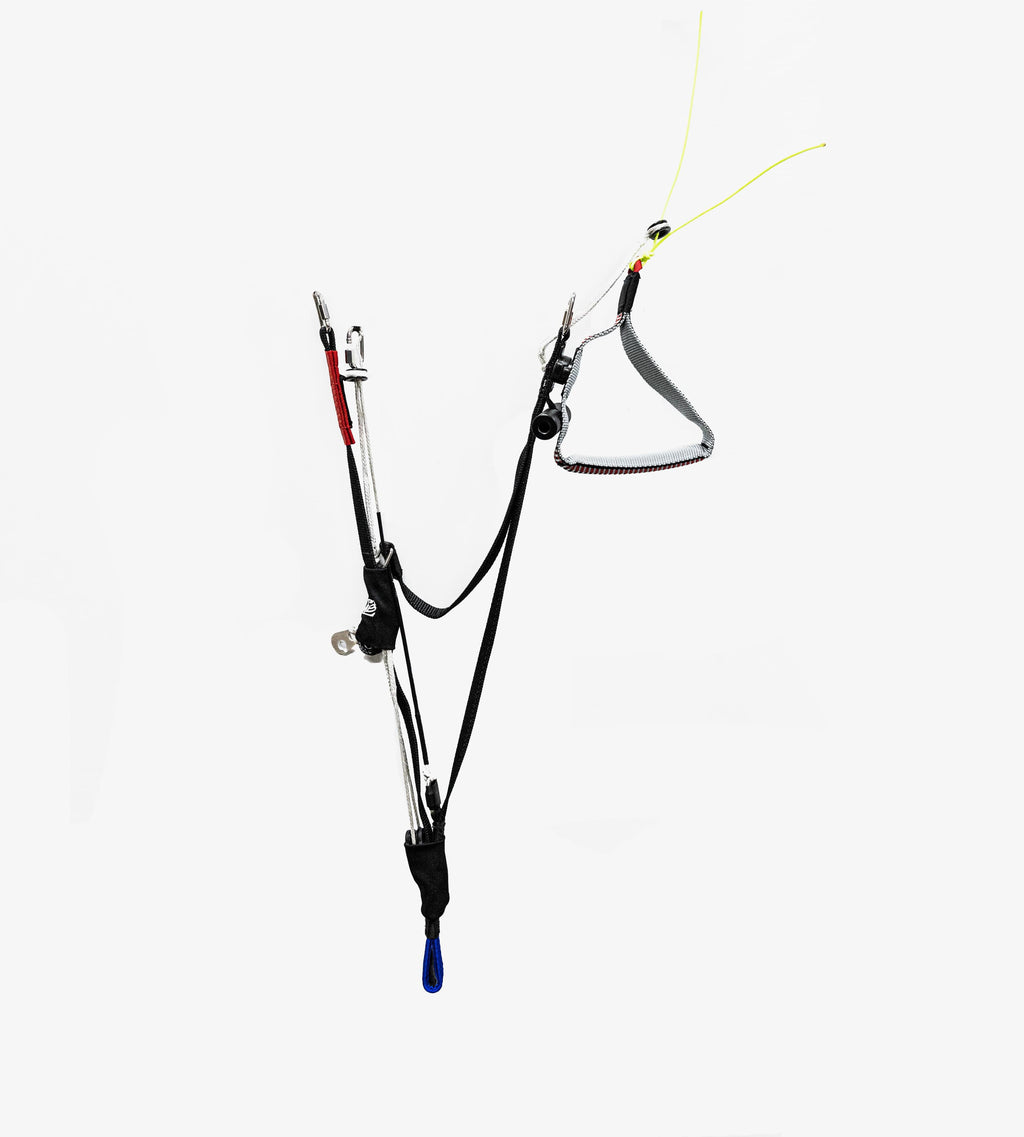

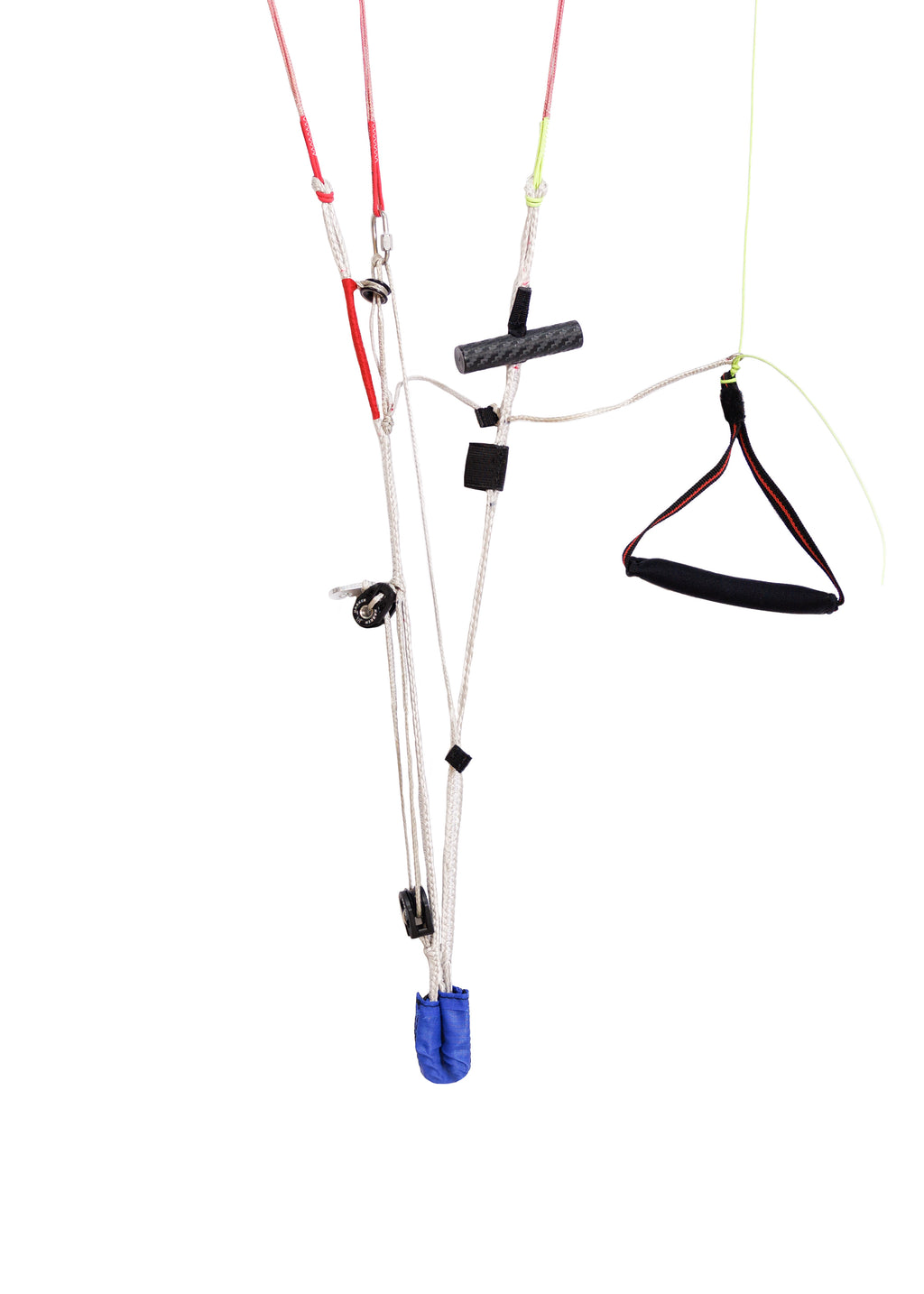

- 2 risers for true rear riser steering
- Speed system with Harken pulleys
- Unsheathed aramid lines with optimized diameters
- Mini-ribs on the trailing edge
- Gathering (reefing) system on the trailing edge
- Semi-light Myungjin and light Porcher fabrics selected for ideal compromise between durability and light weight
MATERIALS
Canopy cloth
Upper surface leading edge: Myungjin MJ40 MF
Upper surface: Myungjin MJ32 MF
Lower surface: Porcher Skytex, 27 g/m²
Lines
Upper: Edelrid 8001 / 050 / 070 / 090 / 130 (unsheathed aramid)
Middle: Edelrid 8001 / 050 / 070 / 090 / 130 / 190 (unsheathed aramid)
Main: Edelrid 8001 090 / 130 / 190 / 230 / 280 / 340 (unsheathed aramid)
